LUBRICATION SYSTEMS · ISHAN
CPV03 DOSING NIPPLE
CPV032 MODEL
CPV03 — Centralized lubrication equipment that delivers measured quantities of grease or oil to machine lubrication points at set intervals, ISHAN.
[ PRODUCT CATALOG ]
Lubrication Systems
Filter our hydraulic and pneumatic system components by category, brand or product name.
14 PRODUCTS (FILTERED)
Centralised lubrication systems deliver a measured amount of oil or grease at set intervals to points such as linear guideways, bearings, chains and seals. The gain over manual greasing is not only labour: because the dose is repeatable, both the wear caused by under-lubrication and the contamination caused by over-lubrication disappear. ISHAN units are listed in the catalogue. YGL automatic centralised lubrication units come with 1.2–2 litre reservoirs, 80–100 bar outlet pressure and digital, PLC or manual timing control. YESA/YESB cam driven, resistance type units run on single phase 110 V or 220 V, with a 2 litre reservoir, adjustable cycle intervals of 3/5/15/30/60 minutes, 3–6 cc output per cycle and Ø4 or Ø6 outlet connections. Manually operated YML8 and YMK8 units hold 0.6 and 0.8 litres and need no separate power supply. On the distribution side, DV series oil injectors and DFA and DT series grease metering distributors are available; the modular block design lets one block expand to 24 outlet points, each with its own dose. Send us the number of lubrication points, line lengths and the lubricant you use and we will quote a suitable unit and distributor combination.
LUBRICATION SYSTEMS · ISHAN
DFA Series GREASE Dosed Distributors
DFA-SERISI-GRES-YAG-DOZAJLI-DAGITICILAR5 MODEL
Grease and/or oil dosing systems generally consist of a pump and a dosing valve. In these systems, the same amount of dosing is ensured each time to the produced part, while at the same time...
LUBRICATION SYSTEMS · ISHAN
DT Series GREASE Dosing Distributors
DT-SERISI-GRES-YAG-DOZAJLI-DAGITICILAR5 MODEL
Thanks to its modular structure, it provides flexibility of use. Each distributor block is composed of slices with the number of outlets 1, 2 or 4. Output point 24 in a distributor block...
LUBRICATION SYSTEMS · ISHAN

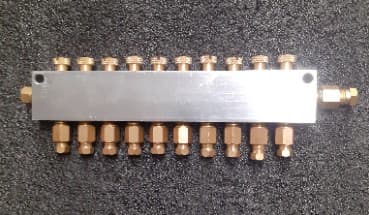

DV Series OIL Dosing Distributors
DV-SERISI-SIVI-YAG-DOZAJLI-DAGITICILAR9 MODEL
Oil distributors for grease and/or oil dosing systems.
LUBRICATION SYSTEMS · ISHAN
AUTO LUBRICATION SYSTEM
YGL-GA20
YGL-GA20 — Automatic (cyclic) lubrication equipment, ISHAN.
LUBRICATION SYSTEMS · ISHAN
AUTO LUBRICATION SYSTEM
YGL-GA200
YGL-GA200 — Automatic (cyclic) lubrication equipment, ISHAN.
LUBRICATION SYSTEMS · ISHAN
AUTO LUBRICATION SYSTEM
YGL-G20
YGL-G20 — Automatic (cyclic) lubrication equipment, ISHAN.
LUBRICATION SYSTEMS · ISHAN
AUTO LUBRICATION SYSTEM
YGL-G200
YGL-G200 — Automatic (cyclic) lubrication equipment, ISHAN.
LUBRICATION SYSTEMS · ISHAN
AUTO LUBRICATION SYSTEM
YAE-A2P2
YAE-A2P2 — Automatic (cyclic) lubrication equipment, ISHAN.
LUBRICATION SYSTEMS · ISHAN
YES110 110V AUTO. LUBRICATION SYSTEM
YES110
YES110 — Automatic (cyclic), 110V lubrication equipment, ISHAN.
LUBRICATION SYSTEMS · ISHAN
YESA-YESB Automatic Manual (Cam) Lubrication
YESA-YESB-OTOMATIK-MANUEL-YAGLAMA3 MODEL
Cam, gradual time automatic lubrication unit. Resistance system.
LUBRICATION SYSTEMS · ISHAN
YGL Automatic Central Lubrication Unit
YGL-OTOMATIK-MERKEZI-YAGLAMA-UNITESI3 MODEL
It is used to press the same amount of oil with proportional distributors to lubrication points such as linear slide, friction slide, bearing, felt in applications requiring lubrication by motor and gear transfer method....
LUBRICATION SYSTEMS · ISHAN
YMK8 0,8LT MANUAL LUBRICATION SYSTEM
YMK8
YMK8 — Manual lubrication equipment, ISHAN.
LUBRICATION SYSTEMS · ISHAN
YML8 0,6LT MANUAL LUBRICATION SYSTEM
YML82 MODEL
YML8 — Lubrication system component that makes dose and period repeatable compared to manual lubrication, extending bearing and slide life, ISHAN.
